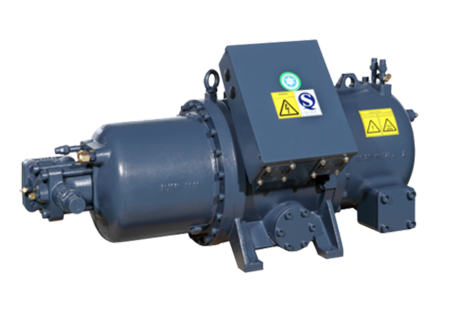

RC2-G&T high temperature heat pump

Newly launched HANBELL RC2-G/T series semi hermetic screw compressor was developed based on RC2 series compressor. The new compressor suitable for high Saturated Discharge Temperature and the newly designed high efficiency motor make the operation range of RC2-G/T series much wider.

RC2-G series belong to high condensing temperature model which is designed for the low waste heat recovery requirement and the R134a refrigerant system, the limit Saturated Discharge Temperature of this new type can reach up to 85℃.

RC2-T series belong to ultra-high condensing temperature model which is designed for the high waste heat recovery requirement and the R245fa refrigerant system. The limit Saturated Discharge Temperature of this new type can break the limit of traditional compressor and reach up to 125℃, thus steam can be produced directly.

Download

Features

RC2-G Specification

RC2-T Specification

Catalogue & Technical Manual

Drawing

The RC2-G/T series compressor consists of 20 models, with condensation temperatures ranging from 75 ° C to 125 ° C

According to the operating conditions of R134a and R245fa, the most suitable high efficiency motor is designed

Long life bearing is used to meet ultimate operation conditions

Adopt floating medium pressure (economizer return gas pressure) design, so that the compressor can use the economizer no matter it is under full load or partial load

Applicable to R134a, R245fa and other environmental refrigerants

A new protection module INT69 HBY Diagnose is equipped as an standard

Model	Compressor					Motor				Strength test (air pressure)	Weight	noise
	Discharge volume (50Hz)	Rotation speed（50Hz）	Vi valve	Capacity control (%)		Type	Start model	Voltage（50Hz)	Protection

	m³/h	RPM		Step type	Stepless type			V		Kg/cm²g	Kg	dB
RC2-100G	98	2950	2.2 3.0 3.5	33，66, 100	33~100	3 phase 2 pole squirrel cage induction motor	Y-△	380	PTC+ PT100	38	285	73
RC2-230G	230			25，50，75，100	25~100						577	79
RC2-260G	257										592	79
RC2-410G	407										779	83
RC2-470G	471										825	84
RC2-710G	713										1168	87
RC2-790G	791										1199	87

Model	Compressor					Motor				Strength test	Weight	Noise
	Discharge volume (50Hz)	Rotation speed（50Hz）	Vi valve	Capacity control (%)		type	Start model	Voltage（50Hz)	Protection
	Discharge volume (50Hz)	Rotation speed（50Hz）		Capacity control (%)				Voltage（50Hz)
	m³/h	RPM		step	stepless			V		Kg/cm²G	Kg	dB
RC-2-200T	193	2950	2.2 3.0 3.5	25 50 75 100	25~100	3 phase 2 pole squirrel cage induction motor	Y-△	380	PTC+ PT100	35	425	78.4
RC-2-230T	230										535	79
RC-2-260T	257										560	79.2
RC-2-300T	293										600	79.6
RC-2-310T	308										580	79.9
RC-2-340T	339										620	80.4
RC-2-370T	366										640	81.5
RC-2-410T	407										740	83.1
RC-2-470T	471										810	84.2
RC-2-510T	508										780	85.2
RC-2-550T	549										850	86.3
RC-2-580T	583										840	86.6
RC-2-620T	619										880	86.9
RC-2-710T	713										1099	87.1
RC-2-790T	791										1180	87.3
RC-2-830T	825										1215	87.6
RC-2-930T	929										1240	88.4
